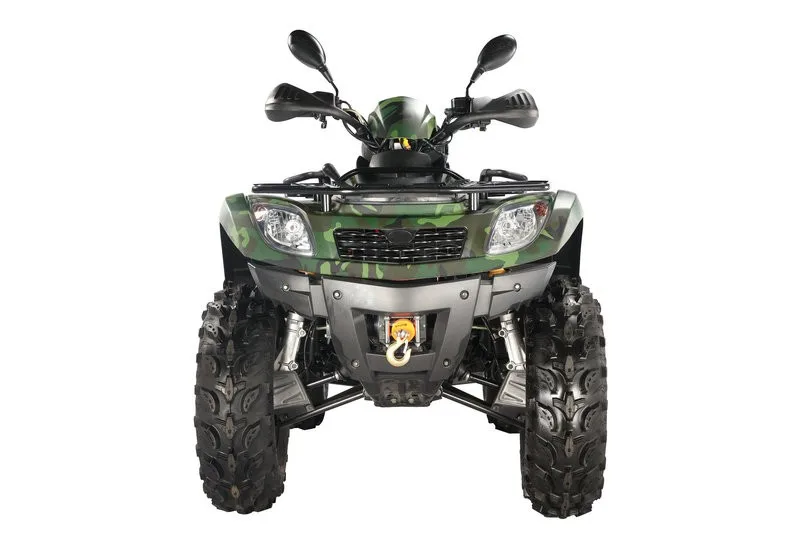

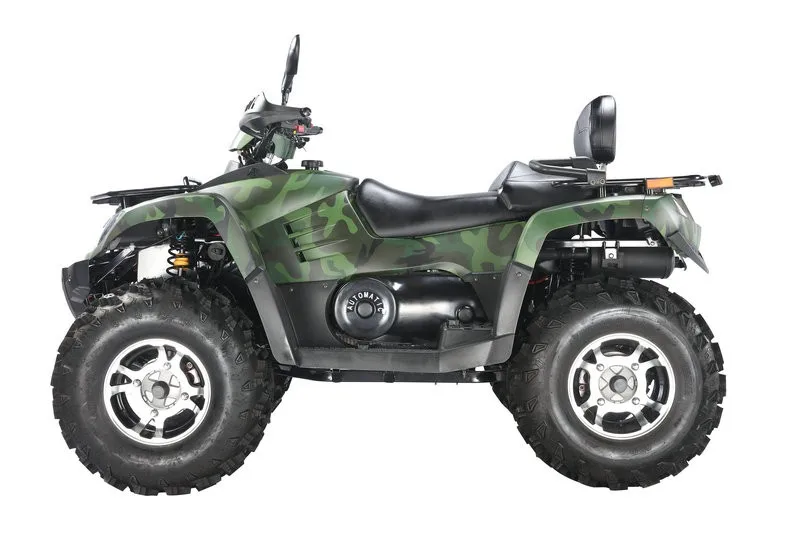

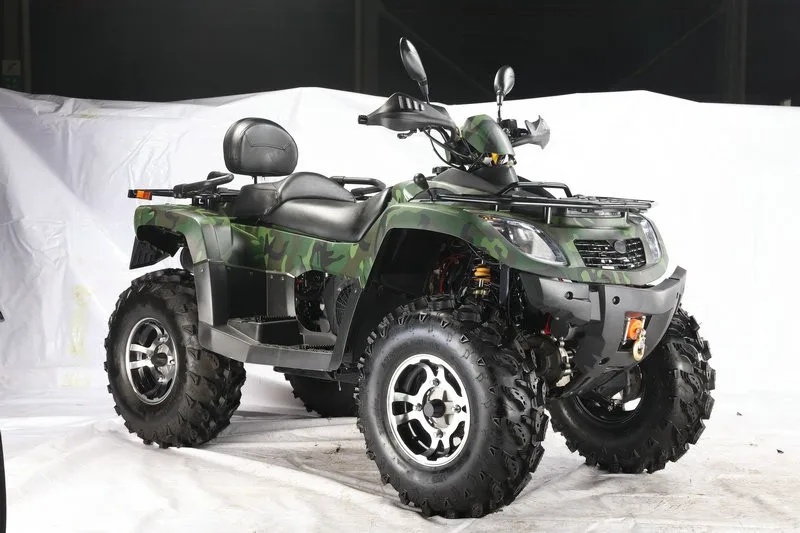

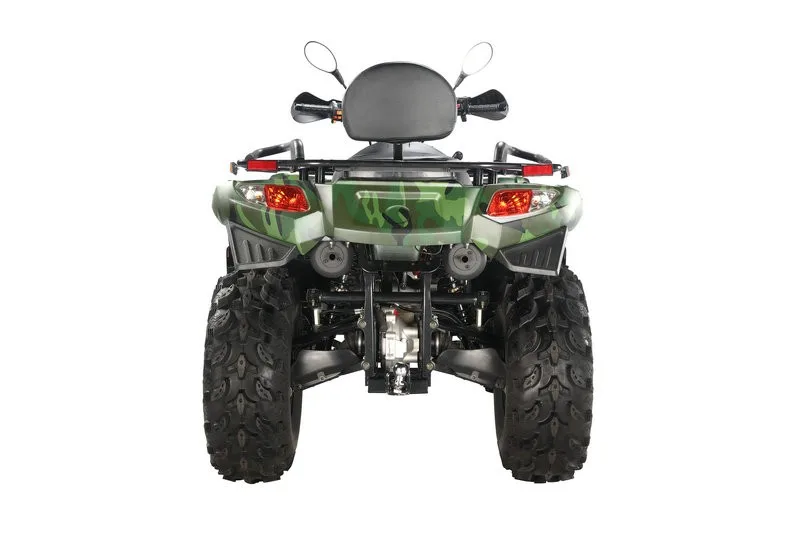

900CC DIESEL ATV, 4X4 SHAFT DRIVE, AUTOMATIC
- They are highly capable, with a max torque of 45N.m, can tow heavy loads and have racks for strapping down cargo and tools, but can also be riden on the special trials and modified for high-performance riding. They are mostly used to get farmers out to their farmland, or by landowners working on small-scale projects---towing sugarcane, for example.
SPECIFICATION
Engine
Type: 4Stroke,V-Twin Cylinder
Engine cooling: Air-Cooled
Max Power : 15kw/3600rpm
Max torque: 52n.m/2600rpm
Starting System : E-start
Max speed: 60km/h
Displacement: 910ml
Noise at 7m(dB) : <86
Fuel supply system: EFI pump
Fuel: Diesel
Dimensions/packing
L x W x H : 2260x1180x1270mm
Seat Height : 1000mm
Wheelbase: 1460mm
Ground Clearance: 300mm
Tank capability: 23L
Carton size L/W/H: 2310X1320X870mm
N.W/G.W : 410kgs/470kgs
Loading quantity: 8pcs/20'GP,18pcs/40'GP,25pcs/40'HQ
Suspension/Brake/wheels/absorber
Suspension/Front: Macphersan Independent
Suspension/Rear: Double Wishbone
Brakes/Front: Hydraulic disc
Brakes/Rear: Hydraulic disc
Brake distance: 7m/30km/h
Wheels/Front: 26x9-12"
Wheels/Rear: 26x11-12"
Shock absorber(F/R): Spring and Damp Shock Absorbor
Battery: 12V/36AH
Transmission: CVT(H/L/N/R)
Transmission oil: 0.8L
Color: Red, Black, Camo
